Sony

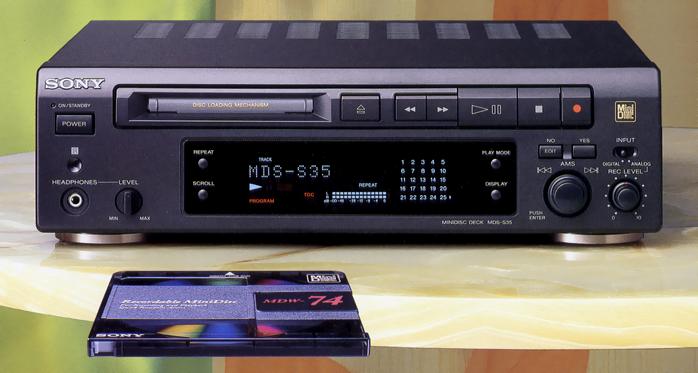

Sony MDS-S35
Sony MDS-S35 (1995)
The MD deck is 280 mm wide, the same as Sony's New Pixie series of personal components.1

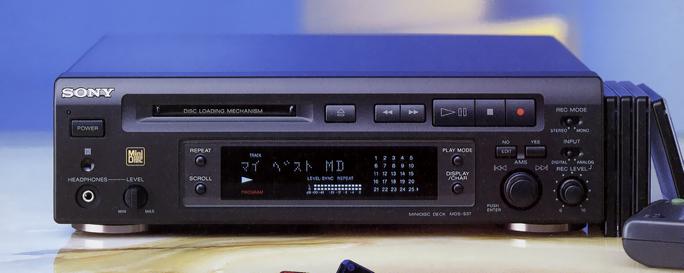

Sony MDS-S37
Sony MDS-S37 (1996)
A 280mm wide MD deck equipped with wide bitstream technology. Released in 1996.2
| Specification | |
|---|---|
| Recording method | Magnetic field modulation overlight method |
| Reproduction method | Non-contact optical |
| Laser | Semiconductor laser (λ=780nm) |
| Number of revolutions | Approximately 400～900 rpm |
| Coding method | ACIRC |
| Sampling frequency | 44.1kHz |
| Audio compression method | ATRAC |
| Modulation method | EFM (8-14 modulation) |
| Number of channels | 2 channels |
| Recording and playback time | Stereo: up to 74 minutes. Mono: 148 minutes |
| Frequency characteristics | 5Hz～20kHz ±0.3dB |
| SN ratio | 96 dB or more |
| Wow Flutter | Measurement limit (0.001% W・peak) or less |
| Input terminal | Line: 1 system Optical digital: 1 system Audio bus: Route 1 |
| Output terminal | Line: 1 system Optical digital: 1 system Headphones: 1 system |
| Power consumption | 13W |
| External dimensions | Width 280x Height 83x Depth 270mm |
| Weight | Approximately 3.3kg |
| Attached | Wireless remote control RM-D8M |
| Sold separately | Remote Commander RM-D10P (￥7,500) for Katakana input only |

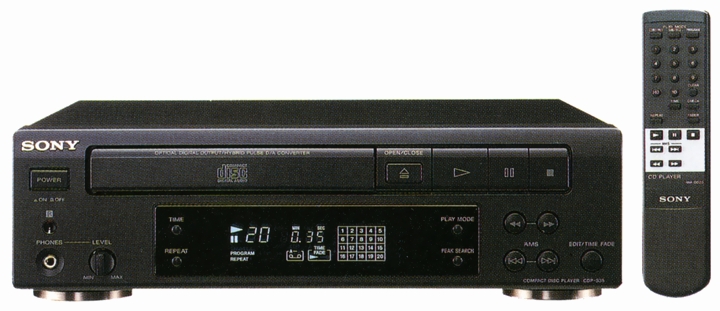

Sony CDP-S35
Sony CDP-S35 (1995)
A CD player designed with combinations with the MDS-S35 and MDS-S37 in mind. Released in 1995.3 There is no "Control A1 terminal" or "CD text decoder".4
| Specification | |
|---|---|
| D/A converter | Hybrid Pulse D/A Converter |
| Frequency characteristics | 2Hz～20kHz ±0.5dB |
| Total harmonic distortion rate | 0.005% or less (EIAJ) |
| SN ratio | 98 dB or more (EIAJ) |
| Dynamic Range | 99 dB or more (EIAJ) |
| Wow Flutter | Limit of measurement (±0.001%W.peak) or less (EIAJ) |
| Output Level | 2Vrms |
| Digital Output | Optical: -18dBm (emission wavelength 660nm) |
| Headphone output level | 10mW (32Ω) |
| Power supply voltage | AC100V, 50Hz/60Hz |
| Power consumption | 8W |
| External dimensions | Width 280x Height 82.5x Depth 285mm |
| Weight | Approximately 2.2kg |
| Attached | Wireless remote control RM-D320 |

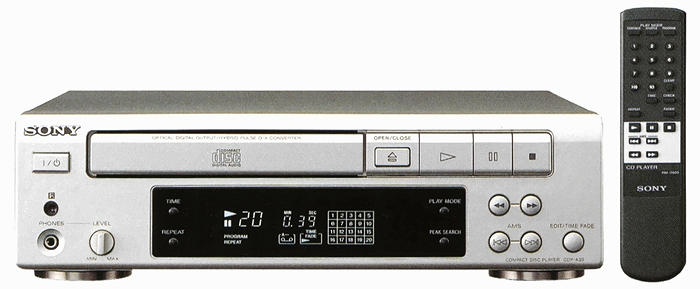

Sony CDP-A39
Sony CDP-A39 (1998)
A a compact CD player released in November 1998. It was listed in the "Hi-Fi Audio Catalog" in June 2001. The CDP-S35 inspired the CDP-A39.4
